DC2 ITR GAUGE CLUSTER INFO

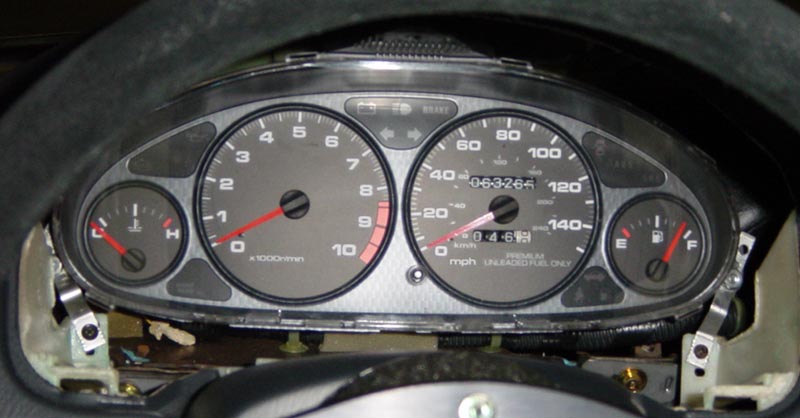

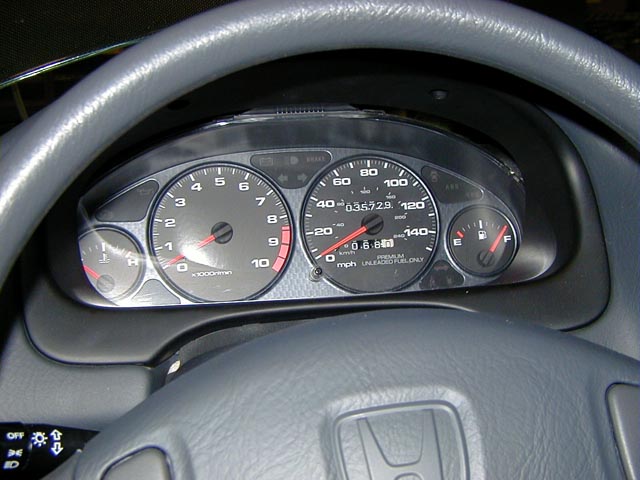

The DC2 Integra gauge cluster does not directly bolt into the EK Civic. However it will bolt in if you make some adaptor plates. Get a couple thin strips of metal, they should be about 1.5 inches long and 3/4 inch wide. Drill a small through hole at either end of the metal strips. It may be necessary to bend the metal strips to get the cluster in the desired position. Once you get the cluster resting snug in the dash put the black plastic shroud back on and it should fit nicely. The two pictures below are examples of how the gauge cluster fits.
[click thumbnail to view larger image]
The wires
for the gauge cluster must be pulled out of the plugs for the Civic cluster
and rearranged for the Integra cluster. For 92-95 Civics it is necessary
to find Integra gauge cluster plugs to use since the stock Civic plugs
are different sizes. I have checked my pin points against the service
manuels for 92-95 Civics. I discovered that changes were made between
92 and 93. These are the pin points for EGs with stock clusters that include
a tachometer. The A connector is 10 pin, the B connector is 12 pin, the
C connector is 14 pin and found on cars with an automatic transmission,
and the D connector is 5 pin. There is also a 5 pin E connector that is
for airbags. It should be yellow and I believe it remains the same on all
vehicles.
16-pin connector (B connector)
Wire
Placement for Integra Cluster |
96-00
Civic |
96-00
Civic |
Function |
92-95
Civic Wire Color |
92
Civic Previous Pin Location |
93-95
Civic Previous Pin Location |
1 |
yel/blk |
B10 |
fuel
gauge |
yel/wht |
B1 |
B1 |
2 |
----- |
----- |
----- |
----- |
----- |
---- |
3 |
----- |
----- |
----- |
----- |
----- |
---- |
4 |
grn/yel |
B8 |
low
fuel light |
not
available |
n/a |
n/a |
5 |
----- |
----- |
----- |
----- |
----- |
---- |
6 |
blu/wht |
B11 |
speedometer |
yel/blu |
B2 |
B2 |
7 |
blu/blk |
B3 |
trunk
open |
grn |
A2 |
A9 |
8 |
red/blu |
B6 |
seat
belt light |
blu/wht |
A1 |
A10 |
9 |
red |
C12 |
brightness |
red |
B12 |
B12 |
10 |
red/blk |
C13 |
gauge
lights |
red/blk |
B11 |
B11 |
11 |
blk/wht |
B15 |
VSS |
blk/yel |
D5 |
B10 |
12 |
----- |
----- |
----- |
----- |
----- |
---- |
13 |
grn/red |
C7 |
left
turn |
grn/blu |
B4 |
B4 |
14 |
grn/yel |
B4 |
right
turn |
grn/yel |
B3 |
B3 |
15 |
red/grn |
C6 |
high
beam |
red/grn |
A10 |
A1 |
16 |
grn/red |
B5 |
e-break |
grn/red |
A9 |
A2 |
13-pin connector (C connector)
Wire
Placement for Integra Cluster |
96-00
Civic Wire Color |
96-00
Civic Previous Pin Location |
Function |
92-95
Civic Wire Color |
92-95
Civic Previous Pin Location |
93-95
Civic Previous Pin Location |
1 |
----- |
----- |
----- |
----- |
----- |
---- |
2 |
----- |
----- |
----- |
----- |
----- |
---- |
3 |
----- |
----- |
----- |
----- |
----- |
---- |
4 |
yel |
C4 |
dimmer
(for cars with A/T) |
yel |
C8 |
C1 |
5 |
----- |
----- |
cruise |
----- |
----- |
---- |
6 |
blk |
B2 |
ground |
blk |
A5 |
A6 |
7 |
yel/grn |
B12 |
temp |
yel/grn |
A4 |
A7 |
8 |
----- |
----- |
----- |
----- |
----- |
---- |
9 |
wht/blu |
B16 |
battery |
wht/blu |
B5 |
B5 |
10 |
----- |
----- |
----- |
----- |
----- |
---- |
11 |
yel/red |
C3 |
oil
pressure |
yel/red |
B6 |
B6 |
12 |
grn/orn |
C5 |
check
engine |
grn/org |
A6 |
A5 |
13 |
blu |
C8 |
tachometer |
blu |
B8 |
B8 |
